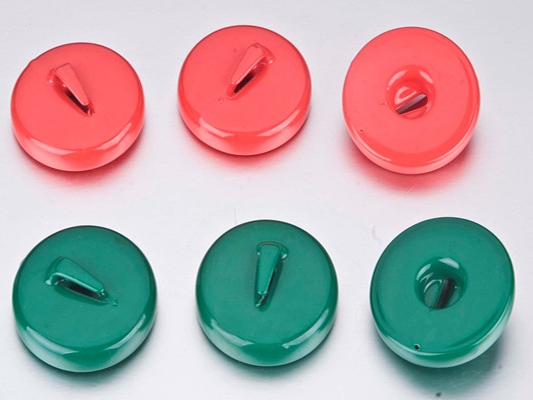

Product Introduction： Magnetic hooks are made up of magnets NdFeB, SmCO, AlNiCo or hard Ferrite and other spare parts, such as metal, plastic. Sometimes magnetic hooks can meet some special requirements while a single magnet can not do. In the meantime, using magnetic hooks can save more cost than just using magnets and gain the same purpose. The basic principle of the magnetic hooks is to direct and concentrate the flux from both magnetic poles to one active face. This is usually achieved with steel pole pieces or a steel-backing cup. The standard selection is according to your using environment and pull force. We can design and manufacture various magnetic assemblies according to clients requirements.
Pot magnet hook –PM-001
|
|
|
|
|
|
|
|
ITEM NO. |
D(mm) |
H(mm) |
d1(mm) |
d2(mm) |
PULL FORCE(Kg) |
|
CERAMIC MAGNET |
|
PM01C.013 |
13.0 |
4.5 |
3.3 |
5.0 |
0.6 |
|
PM01C.016 |
16.0 |
4.5 |
3.5 |
7.0 |
1.4 |
|
PM01C.020 |
20.0 |
6.0 |
4.2 |
9.0 |
2.7 |
|
PM01C.025 |
25.0 |
7.0 |
5.5 |
11.0 |
3.6 |
|
PM01C.032 |
32.0 |
7.0 |
5.5 |
11.0 |
7.2 |
|
PM01C.040 |
40.0 |
8.0 |
5.5 |
11.0 |
9.0 |
|
PM01C.050 |
50.0 |
10.0 |
8.5 |
22.0 |
18.0 |
|
PM01C.063 |
63.0 |
14.0 |
6.5 |
24.0 |
29.0 |
|
PM01C.080 |
80.0 |
18.0 |
6.5 |
11.5 |
43.0 |
|
PM01C.083 |
83.0 |
18.0 |
10.5 |
32.0 |
48.0 |
|
PM01C.088 |
88.0 |
18.0 |
13.6 |
33.0 |
50.0 |
|
PM01C.100 |
100.0 |
22.0 |
10.5 |
34.0 |
68.0 |
|
NDFEB MAGNET |
|
PM01N.016 |
16.0 |
5.0 |
3.5 |
6.5 |
4.0 |
|
PM01N.020 |
20.0 |
7.0 |
4.5 |
8.0 |
6.0 |
|
PM01N.025 |
25.0 |
8.0 |
5.5 |
9.0 |
14.0 |
|
PM01N.032 |
32.0 |
8.0 |
5.5 |
9.0 |
23.0 |
|
PM01N.036 |
36.0 |
9.0 |
6.5 |
11.0 |
29.0 |
|
PM01N.042 |
42.0 |
9.0 |
6.5 |
11.0 |
32.0 |
|
PM01N.048 |
48.0 |
11.5 |
8.5 |
15.0 |
63.0 |
|
PM01N.060 |
60.0 |
15.0 |
8.5 |
15.0 |
95.0 |
|
PM01N.075 |
75.0 |
18.0 |
10.5 |
18.0 |
155.0 |
Pot magnet hook –PM-002
|
ITEM NO. |
D(mm) |
H(mm) |
d1(mm) |
d2(mm) |
PULL FORCE(Kg) |
|
NDFEB MAGNET |
|
PM02N.016 |
16.0 |
5.0 |
3.5 |
6.5 |
5.0 |
|
PM02N.020 |
20.0 |
7.0 |
4.5 |
8.6 |
6.0 |
|
PM02N.025 |
25.0 |
8.0 |
5.5 |
10.4 |
14.0 |
|
PM02N.032 |
32.0 |
8.0 |
5.5 |
10.4 |
25.0 |
|
PM02N.036 |
36.0 |
9.0 |
6.5 |
12.0 |
29.0 |
|
PM02N.042 |
42.0 |
9.0 |
6.5 |
12.0 |
37.0 |
|
PM02N.048 |
48.0 |
11.5 |
8.5 |
16.0 |
68.0 |
|
PM02N.060 |
60.0 |
15.0 |
8.5 |
16.0 |
112.0 |
|
PM02N.075 |
75.0 |
18.0 |
10.5 |
19.0 |
162.0 |
|
CERAMIC MAGNET |
|
PM02C.016 |
16.0 |
4.5 |
3.3 |
6.5 |
1.4 |
|
PM02C.020 |
20.0 |
6.0 |
4.2 |
8.6 |
2.7 |
|
PM02C.025 |
25.0 |
7.0 |
5.5 |
10.4 |
3.6 |
|
PM02C.032 |
32.0 |
7.0 |
5.5 |
10.4 |
7.2 |
|
PM02C.040 |
40.0 |
8.0 |
5.5 |
10.4 |
9.0 |
|
ALNICO MAGNET |
|
PM02A.019.1 |
19.1 |
7.5 |
3.7 |
7.8 |
3.0 |
|
PM02A.028.6 |
28.6 |
8.5 |
4.8 |
8.5 |
5.0 |
|
PM02A.038.1 |
38.1 |
10.4 |
4.8 |
11.1 |
13.0 |
Pot magnet hook –PM-003
|
ITEM NO. |
d(mm) |
H(mm) |
PULL FORCE(Kg) |
|
NDFEB MAGNET |
|
P03N.006 |
6.0 |
4.5 |
0.5 |
|
P03N.008 |
8.0 |
4.5 |
1.3 |
|
P03N.010 |
10.0 |
4.5 |
2.5 |
|
P03N.013 |
13.0 |
4.5 |
6.0 |
|
P03N.016 |
16.0 |
4.5 |
9.5 |
|
P03N.020 |
20.0 |
6.0 |
14.0 |
|
P03N.025 |
25.0 |
7.0 |
20.0 |
|
P03N.032 |
32.0 |
7.0 |
35.0 |
|
CERAMIC MAGNET |
|
P03C.010 |
10.0 |
4.5 |
0.4 |
|
P03C.013 |
13.0 |
4.5 |
1.0 |
|
P03C.016 |
16.0 |
4.5 |
1.8 |
|
P03C.020 |
20.0 |
6.0 |
3.0 |
|
P03C.025 |
25.0 |
7.0 |
4.0 |
|
P03C.032 |
32.0 |
7.0 |
8.0 |
|
P03C.036 |
36.0 |
7.7 |
10.0 |
|
P03C.040 |
40.0 |
8.0 |
12.5 |
|
P03C.047 |
47.0 |
9.0 |
18.0 |
|
P03C.050 |
50.0 |
10.0 |
22.0 |
|
P03C.057 |
57.0 |
10.5 |
28.0 |
|
P03C.063 |
63.0 |
14.0 |
35.0 |
|
P03C.080 |
80.0 |
18.0 |
60.0 |
|
P03C.100 |
100.0 |
22.0 |
90.0 |
|
P03C.125 |
125.0 |
26.0 |
130.0 |
|
SMCO MAGNET |
|
P03S.006 |
6.0 |
4.5 |
0.5 |
|
P03S.008 |
8.0 |
4.5 |
1.1 |
|
P03S.010 |
10.0 |
4.5 |
2.0 |
|
P03S.013 |
13.0 |
4.5 |
4.0 |
|
P03S.016 |
16.0 |
4.5 |
6.0 |
|
P03S.020 |
20.0 |
6.0 |
9.0 |
|
P03S.025 |
25.0 |
7.0 |
15.0 |
|
P03S.032 |
32.0 |
7.0 |
22.0 |
Pot ,magnet hook—PM-004
|
|
|
|
|
|
|
|
ITEM NO. |
d1(mm) |
d2(mm) |
H1(mm) |
H2(mm) |
M(mm) |
PULL FORCE(Kg) |
|
NDFEB MAGNET |
|
P04N.010 |
10.0 |
5.5 |
12.0 |
5.0 |
3 |
2.5 |
|
P04N.012 |
12.0 |
6.0 |
13.0 |
5.0 |
3 |
6.0 |
|
P04N.016 |
16.0 |
6.0 |
13.0 |
5.0 |
4 |
9.0 |
|
P04N.020 |
20.0 |
8.0 |
15.0 |
7.0 |
4 |
14.0 |
|
P04N.025 |
25.0 |
10.0 |
17.0 |
8.0 |
5 |
22.0 |
|
P04N.032 |
32.0 |
10.0 |
18.0 |
8.0 |
6 |
34.0 |
|
P04N.036 |
36.0 |
10.0 |
18.0 |
8.0 |
6 |
41.0 |
|
P04N.042 |
42.0 |
12.0 |
20.0 |
9.0 |
6 |
68.0 |
|
P04N.048 |
48.0 |
12.0 |
24.0 |
11.5 |
8 |
81.0 |
|
P04N.060 |
60.0 |
14.0 |
30.0 |
15.0 |
8 |
113.0 |
|
P04N.075 |
75.0 |
16.0 |
34.0 |
15.0 |
10 |
164.0 |
|
CERAMIC MAGNET |
|
P04C.010 |
10.0 |
6.0 |
11.5 |
4.5 |
3 |
0.4 |
|
P04C.013 |
13.0 |
6.0 |
11.5 |
4.5 |
3 |
1.0 |
|
P04C.016 |
16.0 |
6.0 |
11.5 |
4.5 |
4 |
1.8 |
|
P04C.020 |
20.0 |
6.0 |
13.0 |
6.0 |
4 |
3.0 |
|
P04C.025 |
25.0 |
6.0 |
15.0 |
7.0 |
4 |
4.0 |
|
P04C.025a |
25.0 |
8.0 |
16.0 |
8.0 |
4 |
4.0 |
|
P04C.032 |
32.0 |
6.0 |
15.0 |
7.0 |
4 |
8.0 |
|
P04C.032a |
32.0 |
8.0 |
16.0 |
7.5 |
4 |
6.0 |
|
P04C.036 |
36.0 |
8.0 |
16.0 |
7.7 |
4 |
10.0 |
|
P04C.040 |
40.0 |
10.0 |
18.0 |
8.0 |
5 |
12.5 |
|
P04C.047 |
47.0 |
12.0 |
19.0 |
9.0 |
6 |
18.0 |
|
P04C.047a |
47.0 |
8.0 |
18.0 |
9.5 |
4 |
15.0 |
|
P04C.050 |
50.0 |
12.0 |
22.0 |
10.0 |
6 |
22.0 |
|
P04C.050a |
50.0 |
8.0 |
18.6 |
10.0 |
4 |
18.0 |
|
P04C.057 |
57.0 |
12.0 |
22.5 |
10.5 |
6 |
28.0 |
|
P04C.057a |
57.0 |
8.0 |
19.0 |
10.3 |
4 |
23.0 |
|
P04C.063 |
63.0 |
15.0 |
30.0 |
14.0 |
8 |
35.0 |
|
P04C.063a |
63.0 |
8.0 |
20.4 |
12.0 |
4 |
25.0 |
|
P04C.080 |
80.0 |
10.0 |
34.0 |
18.0 |
10 |
60.0 |
|
P04C.100 |
100.0 |
22.0 |
43.0 |
22.0 |
12 |
90.0 |
|
P04C.125 |
125.0 |
25.0 |
50.0 |
26.0 |
14 |
130.0 |
Pot magnet hook—PM—005
|
ITEM NO. |
D(mm) |
H(mm) |
L(mm) |
M(mm) |
PULL FORCE(Kg) |
|
NDFEB MAGNET |
|
PM05N.010 |
10.0 |
5.0 |
12.0 |
3 |
2.2 |
|
PM05N.012 |
12.0 |
5.0 |
13.0 |
3 |
3.2 |
|
PM05N.016 |
16.0 |
5.0 |
13.0 |
4 |
5.5 |
|
PM05N.020 |
20.0 |
7.0 |
15.0 |
4 |
9.0 |
|
PM05N.025 |
25.0 |
8.0 |
17.0 |
5 |
22.0 |
|
PM05N.032 |
32.0 |
8.0 |
18.0 |
6 |
34.0 |
|
PM05N.036 |
36.0 |
8.0 |
18.0 |
6 |
41.0 |
|
PM05N.042 |
42.0 |
9.0 |
20.0 |
8 |
68.0 |
|
PM05N.048 |
48.0 |
11.5 |
24.0 |
8 |
81.0 |
|
PM05N.060 |
60.0 |
15.0 |
30.0 |
8 |
113.0 |
|
PM05N.075 |
75.0 |
15.0 |
34.0 |
10 |
164.0 |
|
CERAMIC MAGNET |
|
PM05C.010 |
10.0 |
4.5 |
11.5 |
3 |
0.4 |
|
PM05C.013 |
13.0 |
4.5 |
11.5 |
3 |
1.0 |
|
PM05C.016 |
16.0 |
4.5 |
11.5 |
3 |
1.8 |
|
PM05C.020 |
20.0 |
6.0 |
13.0 |
3 |
3.0 |
|
PM05C.025 |
25.0 |
7.0 |
15.0 |
4 |
4.0 |
|
PM05C.032 |
32.0 |
7.0 |
15.0 |
4 |
8.0 |
|
PM05C.047 |
47.0 |
9.0 |
17.0 |
3 |
18.0 |
|
PM05C.057 |
57.0 |
10.5 |
18.5 |
4 |
28.0 |
|
PM05C.063 |
63.0 |
14.0 |
29.0 |
4 |
35.0 |
Pot magnet hook PM-006
|
ITEM NO. |
D(mm) |
H(mm) |
M(mm) |
K(mm) |
PULL FORCE(Kg) |
|
CERAMIC MAGNET |
|
PM06C.025 |
25.0 |
7.0 |
4 |
5.2 |
3.6 |
|
PM06C.032 |
32.0 |
7.0 |
4 |
5.2 |
7.5 |
|
PM06C.040 |
40.0 |
8.0 |
4 |
5.2 |
9.0 |
|
PM06C.050 |
50.0 |
10.0 |
6 |
12.0 |
17.0 |
|
PM06C.063 |
63.0 |
14.0 |
8 |
13.0 |
35.0 |
|
PM06C.080 |
80.0 |
18.0 |
8 |
14.5 |
55.0 |
|
NDFEB MAGNET |
|
PM06N.032 |
32.0 |
7.0 |
5 |
5.5 |
33.0 |
|
PM06N.040 |
40.0 |
8.0 |
5 |
10.5 |
50.0 |
|
PM06N.050 |
50.0 |
10.0 |
8 |
9.5 |
80.0 |
|
PM06N.063 |
63.0 |
14.0 |
10 |
11.7 |
110.0 |
|
PM06N.075 |
75.0 |
15.0 |
10 |
13.0 |
174.0 |
Pot magnet hook PM-007
|
ITEM NO. |
D(mm) |
H(mm) |
M(mm) |
PULL FORCE(Kg) |
|
NDFEB MAGNET |
|
PM07N.006 |
15 |
15 |
4 |
4.5 |
|
PM07N.008 |
20 |
15 |
4 |
10 |
|
PM07N.010 |
25 |
15 |
4 |
12 |
|
PM07N.013 |
30 |
15 |
4 |
30 |
Pot magnet hook PM-008
|
ITEM NO. |
d(mm) |
H(mm) |
M(mm) |
PULL FORCE(Kg) |
|
NDFEB MAGNET |
|
PM08N.009.5 |
9.5 |
12.7 |
4 |
2.8 |
|
PM08N.012.7 |
12.7 |
12.7 |
4 |
8.0 |
|
PM08N.019 |
19.0 |
12.7 |
4 |
20.0 |
|
PM08N.025.4 |
25.4 |
12.7 |
6 |
41.0 |
|
PM08N.031.8 |
31.8 |
12.7 |
6 |
60.0 |
|
