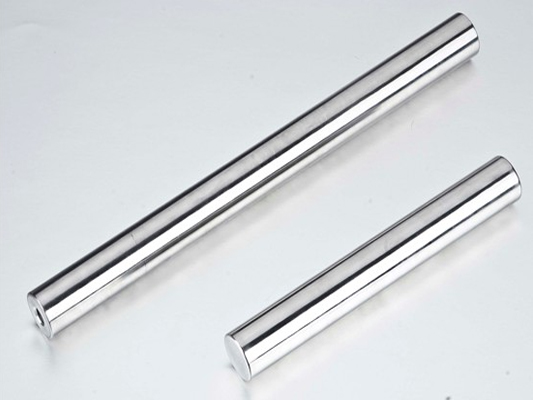

Product Introduction： Magnetic bar is made of permanent magnet and stainless tube with special magnetic circuit. Used in a variety of industries from food or plastics processing to chemical and powder processing, according to the environment of your product, these magnetic filter bars can be made with Alnico, Ceramic or Rare Earth magnet material. They can be easily installed into machinery or assembled according to the wishes of the customers.
|
ITEM NO. |
DIA (inch) |
LENGTH (inch) |
ITEM NO. |
DIA (inch) |
LENGTH (inch) |
|
MT.004 |
1" |
4" |
MT.024 |
1" |
24" |
|
MT.006 |
1" |
6" |
MT.026 |
1" |
26" |
|
MT.008 |
1" |
8" |
MT.028 |
1" |
28" |
|
MT.010 |
1" |
10" |
MT.030 |
1" |
30" |
|
MT.012 |
1" |
12" |
MT.032 |
1" |
32" |
|
MT.014 |
1" |
14" |
MT.034 |
1" |
34" |
|
MT.016 |
1" |
16" |
MT.036 |
1" |
36" |
|
MT.018 |
1" |
18" |
MT.038 |
1" |
38" |
|
MT.020 |
1" |
20" |
MT.040 |
1" |
40" |
|
MT.022 |
1" |
22" |
MT.050 |
1" |
50" |
|
ITEM NO. |
A * B (inch) |
LENGTH (inch) |
ITEM NO. |
A * B (inch) |
LENGTH (inch) |
|
MS.004 |
1" X 1" |
4" |
MS.2.004 |
2" X 2 " |
4" |
|
MS.008 |
1" X 1" |
8" |
MS.2.008 |
2" X 2 " |
8" |
|
MS.012 |
1" X 1" |
12" |
MS.2.012 |
2" X 2 " |
12" |
|
MS.016 |
1" X 1" |
16" |
MS.2.016 |
2" X 2 " |
16" |
|
MS.020 |
1" X 1" |
20" |
MS.2.020 |
2" X 2 " |
20" |
|
MS.024 |
1" X 1" |
24" |
MS.2.024 |
2" X 2 " |
24" |
|
MS.028 |
1" X 1" |
28" |
MS.2.028 |
2" X 2 " |
28" |
|
MS.032 |
1" X 1" |
32" |
MS.2.032 |
2" X 2 " |
32" |
|
MS.036 |
1" X 1" |
36" |
MS.2.036 |
2" X 2 " |
36" |
|
MS.040 |
1" X 1" |
40" |
MS.2.040 |
2" X 2 " |
40" |
|
|
|
PRODUCT SPECIFICAL |
|
1. For round magnetic filter bar, we have Diameter 0.5", 0.75", 1", 1.25", 1.5", 1.75", ?2", 3", 4" for your choice. But the most common diameter is 1". Standard tube lengths range from 3" to 60" long. Square magnetic bars can be provided on request. |
|
2. Constructed of 304 & 316 casing tube, it is equipped with high density Ceramic 8 magnets and high-energy Rare-earth magnets to suit your application. You can build or modify your own magnetic separation equipment with individual magnetic filter bar. |
|
3. Magnetic strength from 1500-12000 Gauss can be asked as per your requirements.For normal magnetic bar equipped with Ceramic magnets, which could give typical peak value of more than 3,000 Gauss on the surfaces, and could be used up to temperatures of 150 For normal magnetic bar equipped with Rare-earth magnets, which could give typical peak value of more than 12,000 Gauss on the surfaces. |
|
4. Fully seal welded with either plain ends or tapped ends to suit your application. |
|
5. All of magnetic bars are waterproof. |
|
6. Condition: Well polished. |
|
Customer Designed are also welcomed. | |
